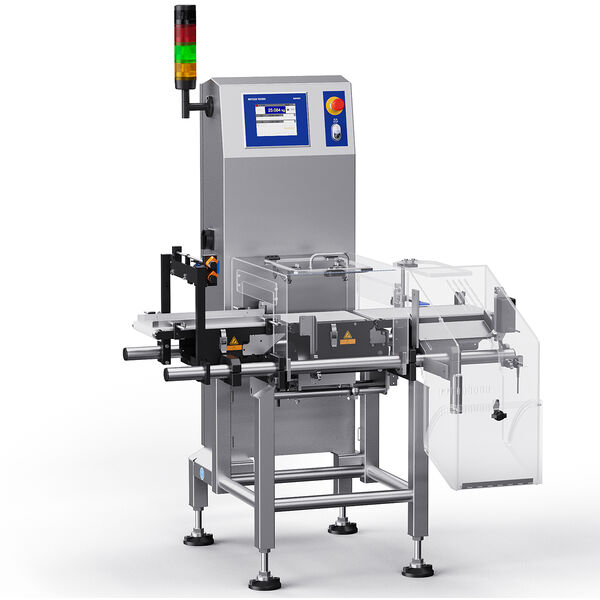

C16+ PlusLine Checkweigher

Name: C16+ PlusLine Checkweigher
Brand: Mettler Toledo

Intelligent dynamic checkweigher delivers reliable precision weighing results for IoT/Industry 4.0 digital solutions. Dedicated options available support both pharmaceutical regulatory compliance and net content regulations.

Material No.: 3111363800

High and Reliable Accuracy

Reliable precision weighing from the digital strain gauge load cell with temperature compensation provides accuracy of 100 mg at 250 ppm throughput.

Audit Ready

The user management levels, records, data storage and audit trail support compliance.

Power Data-Driven Management

Ethernet, Fieldbus and Modbus technologies enable integration options for IoT / Industry 4.0 initiatives.

Flexibility in Dry and Wet Environments

The standardized, modular design with IP54, or IP65 rating delivers reliability and performance in a variety of production environments for pharma and food markets.

Modular, Flexible, Future-Proof Design

The modular system architecture such as two-tube frame design and highly scalable control board supports future modifications.

Documentation to Support Validation

The dedicated Equipment Qualification pack (EQPac) supports complete validation of the checkweigher including machine specific documentation. Comprehensive equipment testing including IQ/OQ procedures support compliance with FDA and GMP regulations.

Easy to Clean

With only four feet on the floor, and two-tube frame design the system has sloped surfaces to prevent product build-up for easy cleaning access.

Intuitive Operation

An intuitive user interface on a multilingual 6.5 inch high-contrast color touchscreen located in front of the conveyor offers maximum operator safety.

ProdX - The Next Level in Product Safety

ProdX software saves you time and money by automating essential quality control processes. The safely stored data can help you grow your business in supporting regulatory compliance and brand protection by proving due diligence.

Global Service Support

A global network of service experts provides fast remote and on-site support. Our comprehensive service offering supports regulatory compliance, high performance, and maximum uptime throughout the life cycle of your product inspection equipment.

Specifications - C16+ PlusLine Checkweigher

IP Rating	IP54 IP65
Compatible Software	ProdX
Connectivity	Ethernet TCP/IP Fieldbus OPC UA USB
Inspection Solution	Checkweighing
Max Product Width	300 mm
Max Weighing Zones	3
Weighing Technology	Strain Gauge
HMI	7" Touchscreen
Packaging Type	Bags Bottle Bundles Cardboard Cartons Cases Composite Cans Flow Packs Trays VFFS
Product Flow	Conveyor
Max Product Length	380 mm
Inspection Application	Completeness Check Weight Control
Product Characteristic	Small-Medium Packages
Industry	Food & Beverage Pharma & Biotech
Weighing Accuracy	from ±0.1 g
Industry Segment	Automotive Bakery and Confectionery Beer, Wine and Other Alcoholic Beverages Cosmetics Dairy Fine and specialty chemicals Food Additives Meat & Poultry & Seafood Nutraceuticals Oils and Fats Pet Food and Animal Feed Pharma Ready Meals Snack Foods Sugar Starch and Yeast Water and other Non-Alcoholic Beverages
Max Product Weight	6 kg
Max Line Speed	100 m/min
Max Throughput	250 ppm
