Gravity Fall Profile Metal Detector

Gravity Fall Profile Metal Detector

Gravity fall metal detection system with full-color touchscreen control, optimized to deliver maximum sensitivity when inspecting free falling powders and granular products.

Material No.: 2801546900

Home Proven Product Inspection Solutions Metal Detection Systems Gravity Fall Profile Metal Detector

Highlights

Maximum Sensitivity and Performance

Multiple ultra-high tuned frequencies with enhanced noise and vibration immunity deliver exceptional sensitivity to consistently detect more metal.

Intuitive to Use and Robust Design

Proven reliability. Intuitive, simple Icon-driven touchscreen with a choice of fully automatic reject devices, optimized for each application.

Minimize Downtime

Condition Monitoring and Reduced Test Mode maximize performance over time and reduce the need for scheduled performance monitoring tests.

Simplified Integration

Zero Metal Free Zone (ZMFZ) technology enables the detector to be installed close to other metal structures without compromising sensitivity performance.

Optimized Configurationss

Available in a choice of finishes including painted for use in dry, non-aggressive environments and stainless steel for more demanding applications.

Comprehensive Rejection Options

Choice of Open Diverter, Y-Valve or Sealtite reject options to suit a range of applications.

Designed for Efficiency

Typical throughput ranges from 1500 to 56,000 Kg/hr depending on aperture size.

Optional Test Kits

ATS provides a superior performance test method. Integrated test facility option provides a simple way to test reject diverter operation.

ProdX - The Next Level in Product Safety

ProdX software saves you time and money by automating essential quality control processes. The safely stored data can help you grow your business in supporting regulatory compliance and brand protection by proving due diligence.

Global Service Support

A global network of service experts provide fast remote and on-site support. Our comprehensive service offer allows you to achieve regulatory compliance, high performance, and maximum uptime throughout the life cycle of your product inspection equipment.

Specifications

Specifications - Gravity Fall Profile Metal Detector

IP Rating
 IP65
IP66
Compatible Software
 ProdX
Connectivity
 Ethernet TCP/IP
Fieldbus
Inspection Solution
 Metal Detection
Max Aperture Size
 300 mm
HMI
 5.7" Touchscreen
Packaging Type
 Unpackaged
Product Flow
 Freefall/Gravity Fed
Frequencies
 up to 800 kHz
Inspection Application
 Contamination Detection
Product Characteristic
 Dry
Granules
Powder
Industry
 Chemical
Food & Beverage
Pharma & Biotech
Industry Segment
 Agriculture and Bulk Foods
Bakery and Confectionery
Bulk Chemicals
Dairy
Fine and specialty chemicals
Pet Food and Animal Feed
Pharma
Snack Foods
Sugar Starch and Yeast

Documentation

Datasheets
Profile Gravity Fall Metal Detector | Datasheet
Profile Gravity Fall Metal Detector Datasheet
The Profile Gravity Fall Metal Detector offers superior metal detection sensitivity for powders and granules with a full-color touchscreen and easy in...

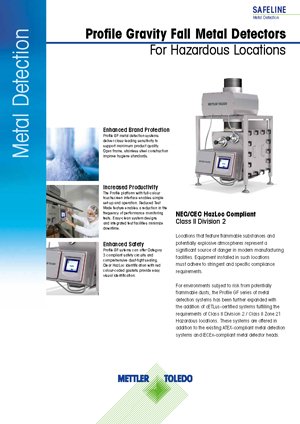

HazLoc Gravity Fall Metal Detection System | Datasheet
HazLoc GF Datasheet
The Profile GF series of metal detection systems offers cETLus-certified systems fulfilling the requirements of Class II Division 2 / Class II Zone 21...
Metal Detection with ProdX Software | Datasheet
Metal Detection with ProdX
Extend the functionality of metal detectors through automation of monitoring and reporting for real-time food safety and quality management.
Product Brochures

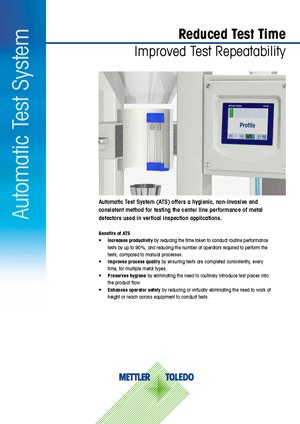

Automatic Test Systems (ATS) Brochure | PDF Download
Automatic Test System (ATS) Brochure
The Automatic Test System (ATS) can decrease the time it takes to complete metal detector performance monitoring tests by up to 90% compared to manual...
Related Products and Solutions

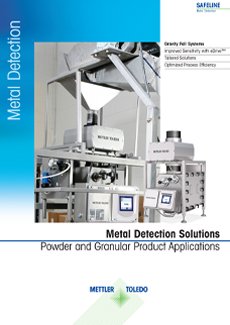

Metal Detection Soluitions for Food & Non-food Guide
Metal Detection Solutions for Food, Non-food and Pharma
This guide provides an overview of METTLER TOLEDO Safeline's range of metal detection solutions for use in food, non-food and pharmaceutical applicati...
Guide to Metal Detection Technology In the Food and Pharmaceutical Industry
Guide to Metal Detection Technology
The Metal Detection Guide provides a comprehensive reference source to metal detection technology for use in the food and pharmaceutical industries.

Accessories

Consumables

Software

Other

ProdX - The Next Level in Product Safety
ProdX Food Safety and Quality Management Software offers full digital management of product inspection equipment for enhanced productivity and efficiency.
