C33 PlusLine WD Checkweigher
Robust Performance.Combines reliable weighing accuracy with rugged machine design for harsh production environments. The system, including the HMI, is IP69 rated and proven to be resistant to most caustic detergents and high-pressure cleaning.
Resilient System Design
Suitable for the harshest of cleaning regimes, with an IP69 rating and proven resistance to most caustic detergents, disinfectants and high-pressure cleaning.
High Precision in Harsh Environments
High weighing precision with MID certification helps to comply with weighing regulations and reduces costly product waste.
Easy to Clean, Hygienic Design
Only four feet on the floor provides easy cleaning access while sloped surfaces prevent liquid retention and discourage bacterial contamination.
Material No.: 24003300200
Features
Accurate, Reliable Weight Inspection
Designed for endurance and reliability with a throughput of up to 250 packs per minute and a weighing range of 25 g to 7 kg. Choose from over 150 configurable software, mechanical and product handling options for optimal performance
Fast Maintenance to Reduce Downtime
The conveyor belts can be released or removed entirely in 3 quick steps to support different hygiene and cleaning regimes, depending on customer requirements. The driving unit can also be dismounted and changed easily for maintenance purposes.
Prevent User Errors and Reduce Downtime
Supports failsafe operation with error safe reassembly of the conveyors. Rollers from the in-and outfeed conveyors cannot be accidentically added to the weighing conveyor. Self-adjusting, elastic belts remove the need for straining upon reassembly.
Support of Food Standards Compliance
The conveyor materials comply with Regulation (EC) 1935/2004, Regulation (EU) 10/2011, and FDA regulations governing the same for direct food contact.
Intuitive Color Touchscreen Operation
The 12 inch color touchscreen is positioned at the front for increased worker safety and is resilient to harsh cleaning with a full IP69 rating, eliminating the need for a cover. The HMI provides access to key data and statistics in over 30 languages.

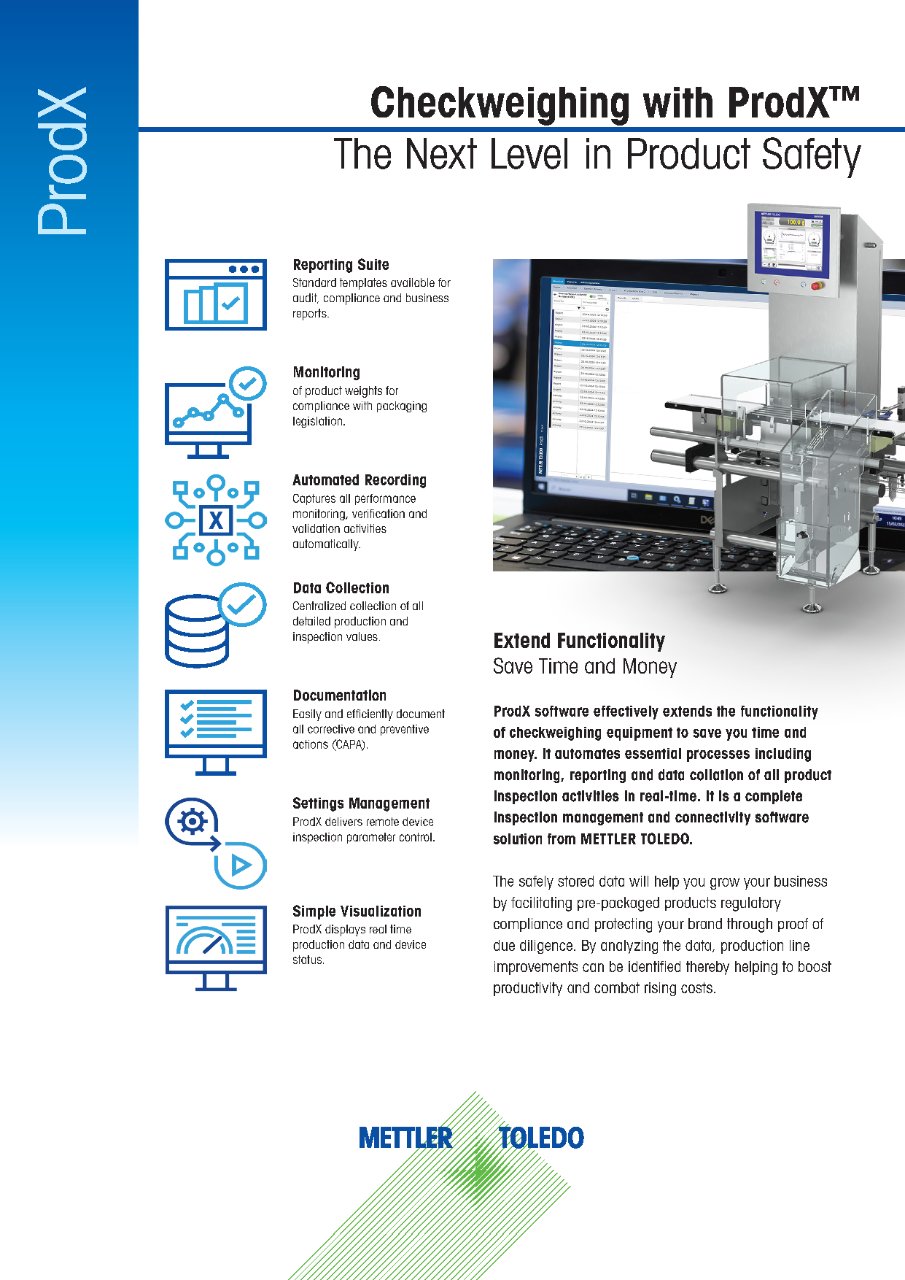

ProdX - The Next Level in Product Safety
ProdX software saves you time and money by automating essential quality control processes. The safely stored data can help you grow your business in supporting regulatory compliance and brand protection by proving due diligence.
Global Service Support
A global network of service experts provides fast remote and on-site support. Our comprehensive service offering supports regulatory compliance, high performance, and maximum uptime throughout the life cycle of your product inspection equipment.
Specifications
Specifications - C33 PlusLine WD Checkweigher
| IP Rating | IP69 |
| Compatible Software | ProdX |
| Connectivity | Ethernet TCP/IP Fieldbus OPC UA |
| Inspection Solution | Checkweighing |
| Max Product Width | 400 mm |
| Max Weighing Zones | 5 |
| Weighing Technology | EMFR |
| HMI | 12" Touchscreen 7" Touchscreen |
| Packaging Type | Glass Metal Cans Plastic Trays Unpackaged |
| Product Flow | Conveyor |
| Inspection Application | Completeness Check Weight Control |
| Product Characteristic | Medium-Large Packages Open Round Container Small-Medium Packages Wet |
| Industry | Chemical Food & Beverage |
| Weighing Accuracy | from ±0.2 g |
| Industry Segment | Agriculture and Bulk Foods Beer, Wine and Other Alcoholic Beverages Dairy Meat & Poultry & Seafood Pet Food and Animal Feed Ready Meals Water and other Non-Alcoholic Beverages |
| Max Product Weight | 7 kg |
| Max Line Speed | 90 m/min |
| Max Throughput | 250 ppm |
Documentation
Datasheets
With a combination of reliable weighing accuracy and rugged machine design, the C33 PlusLine WD boasts hygienic and easy clean design.
Brochures
Learn about our four regional support centers that offer "Test Before You Invest" services for product inspection equipment.
This digital brochure offers five reasons to consider renting a product inspection system, either short or long-term, and how rentals can be beneficia...
A service contract with METTLER TOLEDO gets the most out of your investment in product inspection equipment, with plans intended to maximize performan...
The C-Series Checkweighers with its product lines – StandardLine, PlusLine and AdvancedLine represents the very latest in weighing technology.
