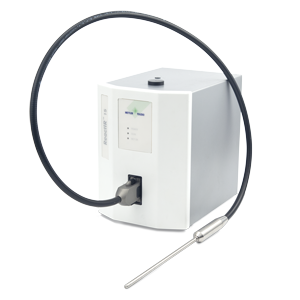

ReactIR 15 - Discontinued Product
Discontinued since: Dec, 2019
Improves Chemistry Understanding
Organic chemists and scientists strive to improve the research and development of chemical compounds, synthetic chemical routes and processes. In situ reaction monitoring tracks concentration changes of key reactive and transient species to understand mechanism pathway, determine kinetics and detect major reaction events. ReactIR 15 is a real-time, in situ mid-infrared based system designed to study reaction progression and provide specific information about reaction initiation, conversion, intermediates and endpoint. The comprehensive nature of the data makes it ideal for real-time process optimization.
Sampling technology options enable the successful monitoring of gas or liquid phases under any process conditions such as:
- Acidic
- Corrosive
- High Pressure Chemistries
- Low Temperature
Chemistries include:
- Acid Chloride Formation
- Grignard Formation
- Mixed Anhydride Formation
Replaced with: System ReactIR 702L, TEMCT
Improve Reaction Understanding
Replaced with: System ReactIR 701L, LN2
Performance Simplified
Specifications
Specifications - ReactIR 15
| For Use In | Laboratory |
| Software | iC IR |
| Detector | LN2 MCT SE MCT |
| Optical Range (Base Unit) | 4000 – 650 cm-1 |
| Purge Requirement | No |
| Dimensions (HxWxD) | 274 mm x 180 mm x 249 mm |
| Weight | 20 lb (9 kg) |
| Communication | USB 2.0 |
| Resolution | 4 cm -1 maximum |
| Operating Range (Temp.) | 19 °C – 25 °C |
| Probe Optical Window | 2500 – 650 cm-1 maximum (Fiber Probe) |
| Wetted Materials | Alloy C-22 Diamond or Silicon Gold |
| Probe Pressure (Maximum) | 107bar (Sentinel) 69bar (6.3 & 9.5mm Fiber Probe) |
| Probe Temperature (Maximum) | 180°C (Fiber Probe) 200°C (Sentinel) |
| Safety Certification | EMC Directive 2004/109/EC, Low Voltage Directive 2006/95/IEC |
| Probe pH Range | 1 – 14 (Diamond) 1 – 9 (Silicon) |
